Lumenera’s Lg11059 features the quality Kodak KAI-11002 CCD image sensor, 4008 x 2672 resolution, large dynamic range with up to 66 dB and selectable 8 or 14-bit data output, providing exceptionally high resolution and sensitivity.

HIGH RESOLUTION CCD SENSOR WITH GLOBAL SHUTTER

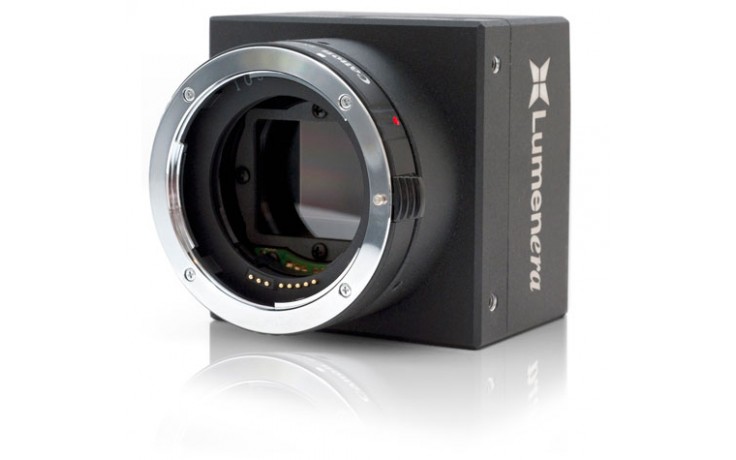

Lumenera’s progressive scan Lg11059 digital camera is ideally suited for rugged 24/7 use. A high resolution CCD sensor, fully global electronic shutter capturing high-speed images with zero blur, and a completely integrated Canon EF lens controller (void of external cabling) position this camera an ideal solution for traffic monitoring, as well as flat panel inspection and pathology.

HIGH QUALITY IMAGES FOR DIFFICULT LIGHTING ENVIRONMENTS

This camera utilizes its high quality CCD sensor to its maximum by providing either vivid color or very sensitive visible light and near IR monochromatic images. Full streaming of uncompressed video along with still image captures are easily controlled through our standard API interface or through the GigE Vision interface.

GIGE VISION COMPLIANT

The Lg11059 is GigE Vision compliant for fast transfer of data (1000 Mbps) of data using low cost standard cables over very long distances.

PLUG-AND-PLAY WITH NO FRAMEGRABBER

The compact design of the Lg11059, measuring 76.2 x 76.2 x 82.6 mm, makes it ideal for installation in small spaces or compact enclosures. The fully locking Gigabit Ethernet cabling, power connector and digital I/O interface ensure a simple plug-and-play installation, minimizing camera clutter with only one standard cable. No framegrabber is required.

MAXIMIZE CAMERA PERFORMANCE WITHIN YOUR OWN APPLICATION

The Lumenera Camera SDK provides a full suite of features and functions that allow you to maximize the camera’s performance within your own vision application. The SDK is compatible with all USB and GigE-based cameras. Microsoft DirectX/DirectShow, Windows API and .NET API interfaces are provided allowing you the choice of application development environments from C/C++ to VB.NET or C#.NET.

PRODUCT HIGHLIGHTS

• Fully integrated Canon EF lens controller
• Small form factor measuring 76.2 x 76.2 x 82.6 mm
• High quality Kodak KAI-11002 CCD sensor
• Color or monochrome, interline transfer, progressive scan 10.7 MP CCD sensor
• 4 output and 3 input, software configurable I/O ports
• Simplified cabling - video, and full camera control over a GigE network allowing for 100M cable lengths
• GigE Vision compliant for fast transfer of data (1000 Mbps)
