  2. MShot MD50-T USB3.0 Camera
MShot logo

MShot MD50-T USB3.0 顯微鏡專用數位相機
5 Mega-Pixels High Frame Rate CMOS Digital Camera for Microscope Imaging

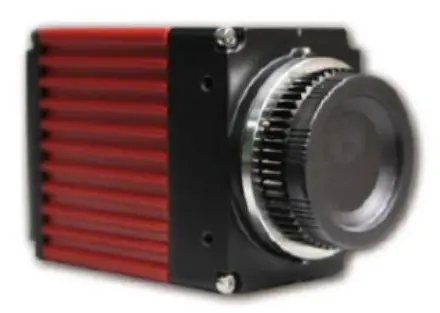

MD50-T CMOS Digital Camera

MShot MD50-T採用最新的USB3.0傳輸介面,提供五百萬畫素超高影像解析力,在全解析模式下影像更新率可達14 fps,標準C-Mount光學接口可支援各廠牌顯微鏡的顯微影像拍照應用與整合,適用於工業檢測、顯微成像、快速影像擷取、醫療、科學研究、學校自然科學教學等領域的顯微影像拍照與檢測應用。

MD50-T配備標準影像量測軟體,可建立多組單位校正尺規,提供線段(寬度)、曲線、矩形、圓形與不規則形等量測工具。

相機驅動程式支援TWAIN和DirectShow串流介面與ImageJ、Micro-Manager、LabView第三方軟體兼容,相容於Windows XP、Windows 7 32-bit/64-bit作業系統。

註:USB2.0 與 USB3.0 介面的傳輸速度比較

  • USB2.0最高傳輸速度為 480 Mbps ∣ 60 MB/s
  • USB3.0最高傳輸速度為  5.0 Gbps ∣ 640 MB/s (理論值)
產品特色
  • 5 Meg-Pixels高解析度
  • 2592x1944 pixels全解析模式下,仍然保有14 fps的高更新率
  • USB3.0傳輸界面,相容於Windows XP,Windows 7,8,10(32-bit / 64-bit)
  • 支援TWAIN和DirectShow界面
  • 自動控制曝光時間、對比度、亮度、色彩飽和度和影像尺寸
  • 可依使用者需求,設定影像尺寸、影像拍照、曝光時間、電子增益、Gamma、銳利度、對比度、亮度、RGB增益及飽和度的調整
產品規格

Effective Pixel

5.0MP

Sensor Size

1/2.5"

Pixel Size

2.2μm×2.2μm

Resolution & Frame Rate

Resolution

Frame rate

2592 × 1944

14FPS

1920×1080

31FPS

1024 × 760

63FPS

1280×960(SUM)

34 FPS

1280×960(BIN)

34 FPS

640×480(SUM)

86 FPS

640×480(BIN)

86 FPS

Sensitivity

1.76V/Lux-sec

Active Size

5.7mm(H) × 4.28mm(V)

Scanning Mode

Progress scan / continuous output

Shutter

Electronic shutter

Exposure Time

109 μs ‒ 3 s

Spectral Response

380 nm ‒ 650 nm


A / D Conversion

8-Bit / 12-Bit

Trigger Mode

Soft trigger

Exposure

Manual/Auto/Area exposure

White Balance

Manual/One push/Area

Image Format

TIF、BMP、JPG、RAW

Software Interface

DirectShow / TWAIN

Software

Support SDK

OS

Windows XP 32-Bit;Windows 7/8/10 32-bit/64-Bit

Digital Interface

USB3.0  / 5 Gbps

Optical Adapter

Standard C-mount

Power Supply

USB 5V

Operating Environment

Temp:0~40℃;humidity:10%~90%RH(No condensation)
