Prior Scientific
產品服務專線:04-27080265 / 台中
02-89924292 / 台北

PureFocus850 雷射自動對焦系統 | 革命性第三代雷射自動對焦技術

PureFocus850 雷射自動對焦系統

革命性第三代雷射自動對焦系統,適用於先進顯微鏡自動化應用

產品介紹

INTRODUCTION >> PureFocus850 雷射自動對焦系統

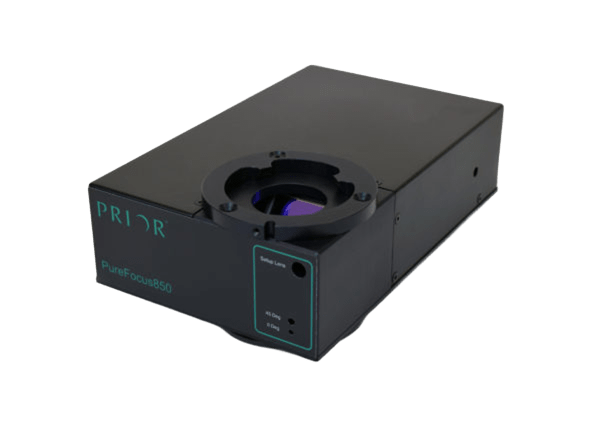

PureFocus850 Overview

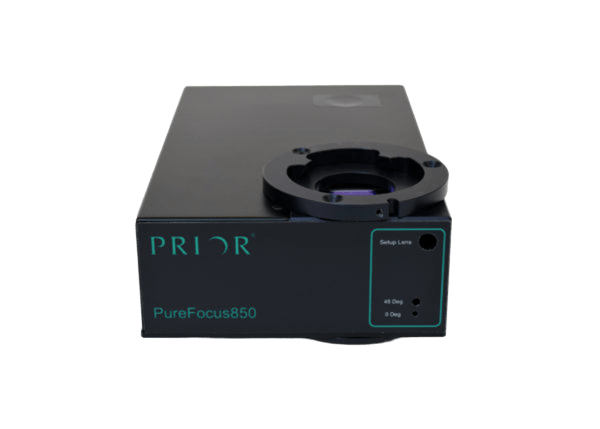

PureFocus850 Laser
PureFocus850 Setup

PureFocus850 是一款革命性的雷射自動對焦系統,適用於生物和工業成像應用。

Prior Scientific 的 PureFocus850 (PF850) 整合了先進的光學系統並內建智慧微處理技術,讓無限遠校正光學系統(Infinity Corrected Optical System)可以精準實現即時自動對焦(Real Time AutoFocus)的自動化整合需求。新一代雷射自動對焦系統內建電動偏移鏡頭(Motorized Offset Lens),允許在多層反射的樣本中選取其中一個反射面做為參考,即時調整需要成像的對焦面(深度),連續且精準保持與參考反射面和偏移至指定的對焦距離高度成像面上。

PF850 適用於正立式和倒立式光學顯微鏡(Upright and Inverted Microscopes),透過無限遠光學原理,您可以將 PF850 整合在各類型的無限遠光學系統上,安裝在無限遠光路上介於物鏡與成像鏡筒之間的空間任意的位置,讓您的光學系統升級成擁有強大的自動對焦功能的專業級設備。(專利申請中)

PF850 的內部將 850nm 的紅外線雷射光二極管(IR laser diode)、精密光學元件、感測器(Detector)和訊號處理電子元件(Signal Processing Electronics)等全部電子組件嵌入在微處理控制器上,可以直接驅動步進馬達(Step Motor)或提供輸出訊號給伺服或壓電式的驅動器。

PF850 能夠在不同的穿透或反射材料表面上執行自動對焦,包括生物玻片(Slide)、玻璃培養皿底部(Glass Bottom Dish)、流體腔(Flow Chamber)、半導體晶圓、液晶面板上的彩色濾光片(Color Filter)、半導體光罩(Mask)、金相樣品等等。

產品特色

FEATURE >> PureFocus850 雷射自動對焦系統
  • 高速 - 基本反應時間為 1ms
  • 提供校正和控制與設定軟體
  • 簡單的二向分光鏡(Dichroic)調整、易於安裝
  • 波長 850nm 非可見光紅外線雷射
  • 輸出訊號支援步進馬達(Step Motors)、壓電(Piezo)驅動器和伺服馬達(ServoMotors)
  • 可應用於多種規格物鏡(Objectives)和樣品類型
  • 補償顯微鏡漂移(Microscope Drift)
  • 適用於正立和倒立式光學系統

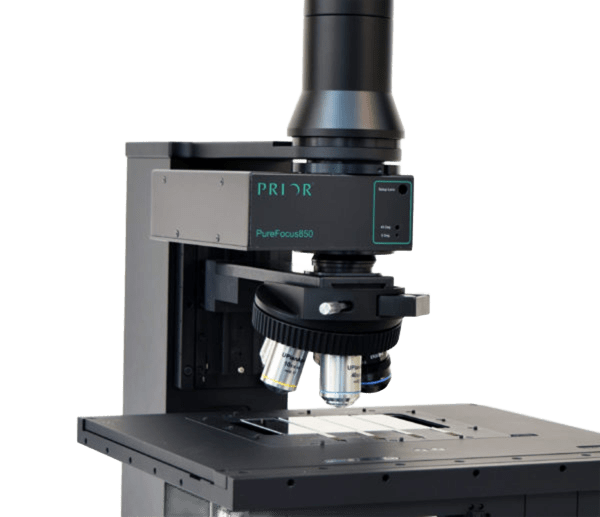

PureFocus850 Setup
  • 可以快速簡單地完成自動對焦系統設定並開始進行自動對焦
  • 輕鬆整合在各類型無限遠光學的光路上(Infinity Path)
  • 使用非可見光雷射,影像不會產生光斑或色偏(Color Shift)問題
  • 在大多數熒光團的發射之外
  • 適用於現有各大廠牌正立與倒立光學顯微鏡
  • 對焦參數可以透過電腦連線下達序列通訊指命或控制板(Keypad)進行更換

產品應用

APPLICATIONS >> PureFocus850 雷射自動對焦系統

半導體

半導體應用
  • Data Storage
  • Semiconductor Wafers
  • Micro-Electro-Mechanical Systems (MEMS)
  • Laser Ablation
  • Other automated inspection and vision-based applications

材料科學

材料科學應用
  • Metrology
  • Ink Jet
  • Razor Blade
  • Reflective Optics
  • Photovoltaic (PV)
  • Diamond Fly Cutting

生命科學

生命科學應用
  • Cell Culture
  • Confocal Imaging
  • Neuroscience Imaging
  • Fluorescence Imaging
  • Cytology & Pathology
  • Well Plates & Slides
  • Routine Microscopy

技術規格

APPLICATIONS >> PureFocus850 雷射自動對焦系統
參數 PF850 PF850M
產品代碼 PF850 PF850M
軸 Z Z
雷射波長 850 奈米 850 奈米
雷射光輸出 < 0.77 mW,1 級 < 0.77 mW,1 級
二向色性 50% 截止 800 奈米 800 奈米
二向色通光孔徑,直徑 32 毫米 32 毫米
典型更新率 1 毫秒 1 毫秒
材料 鋁 鋁
尺寸(長x寬x高) 192 x 119 x 50.5 毫米 192 x 119 x 50.5 毫米
重量 1.5 公斤 1.5 公斤
樣品類型 玻片 / 玻璃底皿 / 流動室 / 孔板 / 晶片 / 其他反射材料 玻片 / 玻璃底皿 / 流動室 / 孔板 / 晶片 / 其他反射材料
目標類型 2x、4x、10x、20x、40x、50x、60x、100x 乾 / 水浸 / 油浸 2x、4x、10x、20x、40x、50x、60x、100x 乾 / 水浸 / 油浸
電源輸入 24 伏特直流電,35 瓦 24 伏特直流電,35 瓦
電源線和數據線 1.5 米 1.5 米
表面追蹤法 表面上的點跟踪 平均表面跟踪

配件

ACCESSORIES >> PureFocus850 雷射自動對焦系統
  • PureFocus850 雷射校正模組
  • PF850 安裝套件

文件下載

RESOURCES >> PureFocus850 雷射自動對焦系統
  • PureFocus850 資料表

產品相容性

COMPATIBILITY >> PureFocus850 雷射自動對焦系統
選項 製造商 相容型號 備註
PF850(M) + LF335 Evident/Olympus BX53M, MX50, MX51, MX61, MX61L, MX63, MX63L
PF850(M) + LF320 Nikon LV100ND, LV100NDA, LV150N, LV150NA, L200N, L200ND, L300N, L300ND, Ni-U
PF850(M) + LF335 Prior OpenStand-U, OpenStand-M, OpenStand-L, OpenStand-V
PF850(M) + PF208 Evident/Olympus IX73 (2-deck) 若兩個 deck 都被占用,請聯絡我們討論細節
PF850(M) + PF214 Evident/Olympus IX73 (1-deck)
PF850(M) + PF203 Evident/Olympus IX71
PF850(M) + PF213 Evident/Olympus IX81
PF850(M) + PF211 Nikon Ti-U
PF850(M) + PF212 Nikon Ti2-U, Ti2-A 若需 Ti2-E,請聯絡我們討論細節
PF850(M) + PF210 Evident/Olympus BX51, BX53
PF850(M) + LF341 Zeiss AxioSkop 40 請聯絡我們討論細節 以確認 Axioimager 型號
PF850(M) + LF312 Leica DM4000, DM5000, DM6000, DM6
