Designing and Manufacturing High Quality Precision Micropatterns

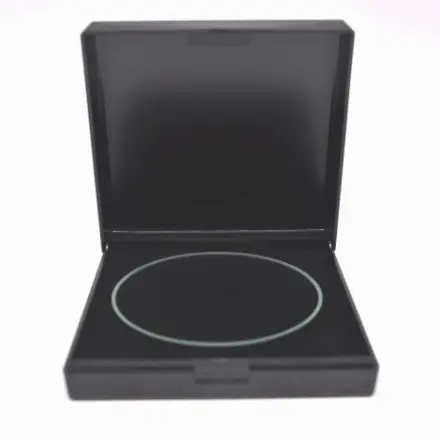

Replacement Reticle Mag7



 Graticulesoptics_M7T100 Pattern M7T100
Description Horizontal Scale 50mm/0.1mm
Key features Reticle for MAG7 Magnifier with 50mm Horizontal Scale subdivided into 500 division of 0.1mm (100µm).

Options

(Line Colour)

Order code
Standard Black 50B02016
Red 50B02016R
White 50B02016W

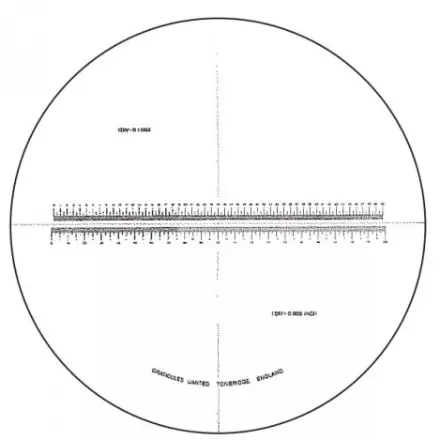

 Graticulesoptics_M7T108 Pattern M7T108
Description Double Scale 50mm/0.1mm and 2''/0.005''
Key features Reticle for MAG7 Magnifier with Double Scale Metric 50mm/0.1mm and English 2.0inch/0.005inch.

Options

(Line Colour)

Order code
Standard Black 50B02017
Red 50B02017R
White 50B02017W



 Graticulesoptics_M7T109 Pattern M7T109
Description Multipurpose
Key features Multipurpose Reticle for MAG7 Magnifier. Includes Scales 50mm/0.1mm & 2.0''/0.01'', Half Portractor, Concentric Circles r4mm-r25mm, Circles Ø0.5mm-Ø10mm, Squares 0.5mm²-10mm², Lines 0.5mm-20mm.

Options

(Line Colour)

Order code
Standard Black 50B02018
Red 50B02018R
White 50B02018W

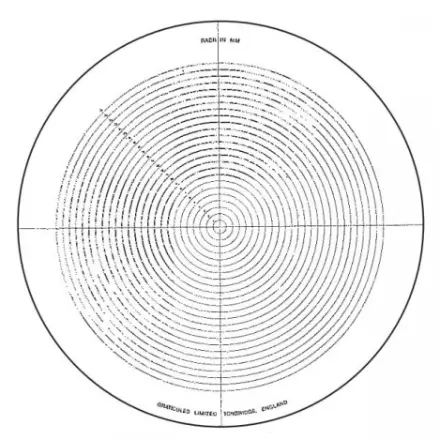

 Graticulesoptics_M7T150 Pattern M7T150
Description Concentric Circles Ø2mm-Ø50mm
Key features Reticle for MAG7 Magnifier with Concentric Circles ranging from 2mm to 50mm diameter.

Options

(Line Colour)

Order code
Standard Black 50B02019
Red 50B02019R
White 50B02019W
