電子顯微鏡用TEM網格片
Graticules Optics公司所製造的TEM網格片憑藉著卓越的產品品質而得到全球眾多使用者的認可,每一片網格片在出廠前都會經過嚴格的品質管制檢查(Value Grids除外),確保您從樣品瓶中取出的任何一片網格片都是可用的。
Graticules Optics擁有電子顯微鏡所使用最多種類的TEM網格片產品支援,包括方形網孔(Square Mesh)、六邊形網孔(Hexagonal Mesh) 、取景器(Finders)、指標索引(Index)、開孔(Holes)、插槽(Slots)和各種材料的專業圖案樣式(Specialist Patterns),以符合各種應用需求。
產品範圍包含有Maxtaform Grids、Embra Grids(Brandsma Grids)和Value Grids等系列,並提供銅(Copper)、銅銠合金(Copper/Rhodium)、鎳(Nickel)、金(Gold)、鉬(Molybdenum)、鈦(Titanium)、不銹鋼(Stainless Steel)、鋁(Aluminium)等等標準材料的選擇,也可提供客製化的網格(Custom Made Grids)和訂製的升降網格(Bespoke Lift-Out Grids),歡迎您來電洽詢。
Square Mesh Grids方型網格 : 50Mesh 75Mesh 100Mesh 150Mesh 200Mesh 300Mesh 400Mesh 500Mesh 600Mesh
提供50-600 Mesh的方型刻劃網格。型號中HF與HR代表沒有中心點標記的網格,其中HR具有更細的格線,而3HG代表帶手柄的網格片,部份網格片有特製帶有中心標記和定位指針的圖樣。
Hexagonal Grids巢狀網格:7Mesh 90Mesh 100Mesh 135Mesh 180Mesh 270Mesh 360Mesh
提供7-360 Mesh的六角形刻劃網格,8HG代表帶手柄的網格片,100Mesh網格片帶有特製標記的圖樣。
Parallel Lines平行格線:84um 127um 165um 254um
平行線設計使可精確測量和比較物體的大小和形狀。
Slotted Staggered Mesh Grids長條型槽狀網格:50/200 75/300 100/400
長方型刻劃網格。
Finder Grids查找參照式網格: 100Mesh 200Mesh 300Mesh 400Mesh 7XC200
間隔位置有標記編號,以提供高倍電子顯微鏡在腔室中快速找到樣本定位。7XC系列為座標矩陣式標示。
Solid Hole and Slot Grids圓孔與槽狀孔: Hols Grid ( 0.4~2.0) Slot Grid(短邊0.2~0.98 / 長邊0.5~2.0)
給予樣品有適當的支撐網格片。
Folded Grids對摺式雙網格:50/50Mesh 100/100Mesh 200/200Mesh 100/200Mesh 100/300Mesh 100/400Mesh
交叉線設計且兩片網格可以對摺。
Freeze Fracture Tissue Processing Screen冷凍切斷組織處理:75Mesh 150Mesh 200Mesh 300Mesh
提供冷凍電子顯微鏡專用網格片。
TEM support films網格塗層支撐膜:Formvar Formvar+Carbon Pioloform Pioloform+Carbon
特製透明支撐薄膜。
Specialist Patterns特殊設計網格: H7 H2A FIB-Out-Cu FIB-Out-Mo Chien-Grid HighOpen
專為特定應用所設計的網格片。
※另外提供網格片收納盒 New TEM Grid Storage Boxes

50 Mesh (1G_50)
50 Mesh Squares Grid for Electron Microscopy
75 Mesh
75 Mesh Squares Grid for Electron Microscopy

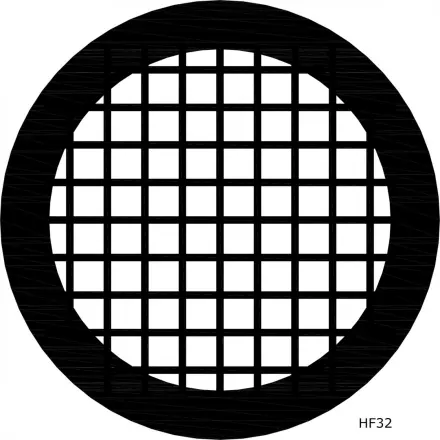

100 Mesh
100 Mesh Squares Grid for Electron Microscopy
150 Mesh
150 Mesh Squares Grid for Electron Microscopy
200 Mesh
200 Mesh Squares Grid for Electron Microscopy
300 Mesh
300 Mesh Squares Grid for Electron Microscopy
400 Mesh
400 Mesh Squares Grid for Electron Microscopy

500 Mesh
500 Mesh Squares Grid for Electron Microscopy

600 Mesh
600 Mesh Squares Grid for Electron Microscopy

50 Mesh Grid with Handle (3HG_50)
50 Mesh Squares Grid with Handle for Electron Microscopy

75 Mesh Grid with Handle (3HG_75)
75 Mesh Squares Grid with Handle for Electron Microscopy

100 Mesh Grid with Handle (3HG_100)
100 Mesh Squares Grid with Handle for Electron Microscopy

150 Mesh Grid with Handle (3HG_150)
150 Mesh Squares Grid with Handle for Electron Microscopy

200 Mesh Grid with Handle (3HG_200)
200 Mesh Squares Grid with Handle for Electron Microscopy

300 Mesh Grid with Handle (3HG_300)
300 Mesh Squares Grid with Handle for Electron Microscopy

400 Mesh Grid with Handle (3HG_400)
400 Mesh Squares Grid with Handle for Electron Microscopy

500 Mesh Grid with Handle (3HG_500)
500 Mesh Squares Grid with Handle for Electron Microscopy

600 Mesh Grid with Handle (3HG_600)
600 Mesh Squares Grid with Handle for Electron Microscopy

7 Mesh (1G_7HEX)
7 Large Hexagonal shaped Holes Grid for Electron Microscopy

90 Mesh (8G_90)
90 Mesh Hexagonal shaped Grid with Handle for Electron Microscopy

100 Mesh (H5)
100 Mesh Hexagonal shaped Grid for Electron Microscopy

135 Mesh (8G_135)
135 Mesh Hexagonal shaped Grid with Handle for Electron Microscopy

180 Mesh (8G_180)
180 Mesh Hexagonal shaped Grid with Handle for Electron Microscopy

270 Mesh (8G_270)
270 Mesh Hexagonal shaped Grid with Handle for Electron Microscopy.

360 Mesh (8G_360)
360 Mesh Hexagonal shaped Grid with Handle for Electron Microscopy.

7 Hexagon Holes Grid with Handle (3HG_7HEX)
7 Large Hexagonal shaped Holes Grid with Handle for Electron Microscopy.

90 Mesh Hexagonal Grid with Handle (8HG_90)
90 Mesh Hexagonal shaped Grid with Handle for Electron Microscopy.

135 Mesh Hexagonal Grid with Handle (8HG_135)
135 Mesh Hexagonal shaped Grid with Handle for Electron Microscopy.

180 Mesh Hexagonal Grid with Handle (8HG_180)
180 Mesh Hexagonal shaped Grid with Handle for Electron Microscopy.

270 Mesh Hexagonal Grid with Handle (8HG_270)
270 Mesh Hexagonal shaped Grid with Handle for Electron Microscopy.

360 Mesh Hexagonal Grid with Handle (8HG_360)
360 Mesh Hexagonal shaped Grid with Handle for Electron Microscopy.

84µm Pitch Parallel Lines (1G_300L)
0.084mm (84µm) Pitch Parallel Lines Grid for Electron Microscopy

127µm Pitch Parallel Lines (1G_200L / HF46)
0.127mm (127µm) Pitch Parallel Lines Grid for Electron Microscopy.

165µm Pitch Parallel Lines (HF45)
0.165mm (165µm) Pitch Parallel Lines Grid for Electron Microscopy

254µm Pitch Parallel Lines (1G_100L)
0.254mm (254µm) Pitch Parallel Lines Grid for Electron Microscopy

84µm Pitch with Divider (1G_300LD)
0.084mm (84µm) Pitch Parallel Lines with Central Dividing bar Grid for Electron Microscopy

127µm Pitch with Divider (1G_200LD / HF44)
0.127mm (127µm) Pitch Parallel Lines Grid for Electron Microscopy

84µm Pitch with Divider and Handle (3HG_300LD)
0.084mm (84µm) Pitch Parallel Lines with Central Dividing bar and Handle Grid for Electron Microscopy

127µm Pitch with Divider and Handle (3HG_200LD)
0.127mm (127µm) Pitch Parallel Lines with Central Dividing bar and Handle Grid for Electron Microscopy

254µm Pitch with Divider and Handle (3HG_100LD)
0.254mm (254µm) Pitch Parallel Lines with Central Dividing bar and Handle Grid for Electron Microscopy

127µm Pitch with Handle (3HG_200L)
0.127mm (127µm) Pitch Parallel Lines Grid for Electron Microscopy

254µm Pitch with Handle (3HG_100L)
0.254mm (254µm) Pitch Parallel Lines Grid for Electron Microscopy

50/200 Slotted Grid (1G_50/200)
50 x 200 Mesh Rectangular Shape Grid for Electron Microscopy

75/300 Slotted Grid (1G_75/300 / HF41 / HR27)
75 x 300 Mesh Rectangular Shape Grid for Electron Microscopy

100/400 Slotted Grid (1G_100/400 / HF42)
100 x 400 Mesh Rectangular Shape Grid for Electron Microscopy

50/200 Slotted Grid with Handle (3HG_50/200)
50 x 200 Mesh Rectangular Shape Grid with Handle for Electron Microscopy

75/300 Slotted Grid with Handle (3HG_75/300)
75 x 300 Mesh Rectangular Shape Grid with Handle for Electron Microscopy

100 Mesh Finder Grid (7FG_100)
100 Mesh Finder Grid for Electron Microscopy with Centre crossline of four squares identified with letters A to L

200 Mesh Finder Grid (7FG_200)
200 Mesh Finder Grid for Electron Microscopy with Corner Square in each 5 x 5 segment identified with letters A-I

300 Mesh Finder Grid (7FG_300)
300 Mesh Finder Grid for Electron Microscopy with Corner Square in each 5 x 5 segment identified with letters A-U

400 Mesh Finder Grid (7FG_400)
400 Mesh Finder Grid for Electron Microscopy with Corner Square in each 5 x 5 segment identified with letters A-Z-A-K

200 Mesh London Finder Grid (H2)
200 Mesh Original London Finder Grid for Electron Microscopy. Ideal for Asbestos TEM Analysis.

100 Mesh Finder Grid with Handle (7HFG_100)
100 Mesh Finder Grid for Electron Microscopy with Centre crossline of four squares identified with letters A to L with Handle.

200 Mesh Finder Grid with Handle (7HFG_200)
200 Mesh Finder Grid with Handle for Electron Microscopy. Corner Square in each 5 x 5 segment identified with letter A-I.

300 Mesh Finder Grid with Handle
300 Mesh Finder Grid with Handle for Electron Microscopy. Corner Square in each 5 x 5 segment identified with letter A-U.

400 Mesh Finder Grid with Handle (7HFG_400)
400 Mesh Finder Grid with Handle for Electron Microscopy. Corner Square in each 5 x 5 segment identified with letter A-Z-A-K.

200 Mesh Copper Index Grid (7XC200)
200 Mesh Copper Index Grid, AHERA type, indexed 1-10 and A-J, 100pcs/vial.

AHERA Type Copper Index Grid (7XC200B)
Copper Index Grid, AHERA type, indexed 1-15 and A-O, 100pcs/vial.

0.4mm Hole Grid (1G_4H)
0.4mm (400µm) Hole Grid for Electron Microscopy.

0.6mm Hole Grid (1G_6H / HF48)
0.6mm (600µm) Hole Grid for Electron Microscopy.

0.8mm Hole Grid (1G_8H)
0.8mm (800µm) Hole Grid for Electron Microscopy.

1.0mm Hole Grid (1G_10H / HF47)
1.0mm (1000µm) Hole Grid for Electron Microscopy.

1.5mm Hole Grid (1G_15H)
1.5mm (1500µm) Hole Grid for Electron Microscopy.

2.0mm Hole Grid (1G_20H)
2.0mm (2000µm) Hole Grid for Electron Microscopy.

0.2mm x 0.5mm Slot Grid (HF51)
0.2mm x 0.5mm (200µm x 500µm) Slot Grid for Electron Microscopy.

0.2mm x 1.5mm Slot Grid (HF50)
0.2mm x 1.5mm (200µm x 1500µm) Slot Grid for Electron Microscopy.

2.0mm x 0.42mm Slot Grid (1G_42S)
2.0mm x 0.42mm (2000µm x 420µm) Slot Grid for Electron Microscopy.

2.0mm x 0.98mm Slot Grid (1G_12S)
2.0mm x 0.98mm (2000µm x 980µm) Slot Grid for Electron Microscopy.

0.4mm Hole Grid with Handle (3HG_4H)
0.4mm (400µm) Hole Grid with Handle for Electron Microscopy.

0.6mm Hole Grid with Handle (3HG_6H)
0.6mm (600µm) Hole Grid with Handle for Electron Microscopy.

0.8mm Hole Grid with Handle (3HG_8H)
0.8mm (800µm) Hole Grid with Handle for Electron Microscopy.

1.0mm Hole Grid with Handle (3HG_10H)
1.0mm (1000µm) Hole Grid with Handle for Electron Microscopy.

1.5mm Hole Grid with Handle (3HG_15H)
1.5mm (1500µm) Hole Grid with Handle for Electron Microscopy.

2.0mm x 0.42mm Slot Grid with Handle (3HG_42S)
2.0mm x 0.42mm (2000µm x 420µm) Slot Grid with Handle for Electron Microscopy.

2.0mm x 0.98mm Slot Grid with Handle (3HG_12S)
2.0mm x 0.98mm (2000µm x 980µm) Slot Grid with Handle for Electron Microscopy.

50/50 Mesh Folding Grid (4G_F50/50)
Folding Grid with "clip" 50 Mesh Squares on both sides for Electron Microscopy.

100/100 Mesh Folding Grid (4G_F100/100)
Folding Grid with "clip" 100 Mesh Squares on both sides for Electron Microscopy.

200/200 Mesh Reference Folding Grid (H12)
Folding Grid with "clip" 200 Mesh one side (H1), 200 mesh reference pattern the other side (H2) for Electron Microscopy.

100/200 Mesh Folding Grid (4G_F100/200)
Folding Grid with "clip" 100 Mesh one side, 200 mesh squares the other side for Electron Microscopy.

100/300 Mesh Folding Grid (4G_F100/300)
Folding Grid with "clip" 100 Mesh one side, 300 mesh squares the other side for Electron Microscopy.

100/400 Mesh Folding Grid (4G_F100/400)
Folding Grid with "clip" 100 Mesh one side, 400 mesh squares the other side for Electron Microscopy.

75 Mesh Freeze Fracture Grid (5G_75FF)
75 Mesh Grid for Electron Microscopy with a Combination of small outside Grid and larger inside Grid for Freeze Fracture Application.

200 Mesh Freeze Fracture Grid (HF14)
200 Mesh Grid for Electron Microscopy with a Combination of small outside Grid and larger inside Grid for Freeze Fracture Application.

75 Mesh Freeze Fracture Grid with Handle (5HG_75FF)
75 Mesh Grid for Electron Microscopy with Handle. A Combination of small outside Grid and larger inside Grid for Freeze Fracture Application.

150 Mesh Tissue Processing Screen (6G_150)
150 Mesh Over-Size Electron Microscopy Grid for Tissue Processing Screen.

200 Mesh Tissue Processing Screen (6G_200)
200 Mesh Over-Size Electron Microscopy Grid for Tissue Processing Screen.

300 Mesh Tissue Processing Screen (6G_300)
300 Mesh Over-Size Electron Microscopy Grid for Tissue Processing Screen.

Formvar Only Coated TEM Grids
Formvar film coating on Copper, Nickel, or Gold grids. Batch tested in laboratory.

Formvar/Carbon Coated TEM Grids
Formvar/Carbon film coatings on Copper, Nickel, or Gold grids. Batch tested in laboratory.

Pioloform Only Coated TEM Grids
Pioloform film coating on Copper, Nickel, or Gold grids. Batch tested in laboratory.

Pioloform/Carbon Coated TEM Grids
Pioloform/Carbon film coating on Copper, Nickel, or Gold grids. Batch tested in laboratory.

400 Mesh Reference Grid (H7)
400 Mesh Reference Grid for Electron Microscopy with Centre Mark and Locating Pointer.

200 Mesh Copper Reference Grid (H2A)
200 Mesh Ahera Type Reference/Finder Grid for Electron Microscopy. Designed for Asbestos TEM Analysis.

GO FIB Cu
Pins numerically annotated, well-defined shape and form, shallow downset for improved performance.

GO FIB Mo
Pins individually annotated, well-defined shape and form.

Chien Grid (9G_20H)
Specialist Electron Microscopy Grid for Specimen Transfer.

200 Mesh Grid with High Open Area (11G_200)
200 Mesh Grid for Electron Microscopy with Thinner bars for greater specimen exposure.

400 Mesh Grid with High Open Area (11G_400)
400 Mesh Grid for Electron Microscopy with Thinner bars for greater specimen exposure.
