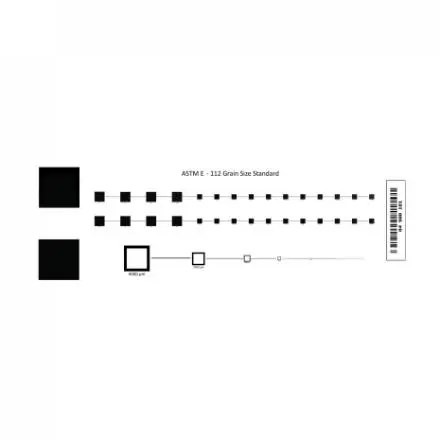

DCI10 ASTM E112 Plate 1 Calibration Slide
ASTM Grain Size chart reproduction from rating 1.0 to 8.0. Including a measurement report.
Calibration slide for the ASTM E112 Grain Size measurement method including a measurement report by both the planimetric and the Heyn method.
Slide pattern includes:
- ASTM Grain Size chart reproduction from 1.0 to 8.0
- Hexagon shapes to give the closest theoretical rating to the nominal value as possible
- Calibration rectangles for video camera input calibration
- Mirror for reflected light shading correction with microscopy imaging software and image analysis systems
